Description

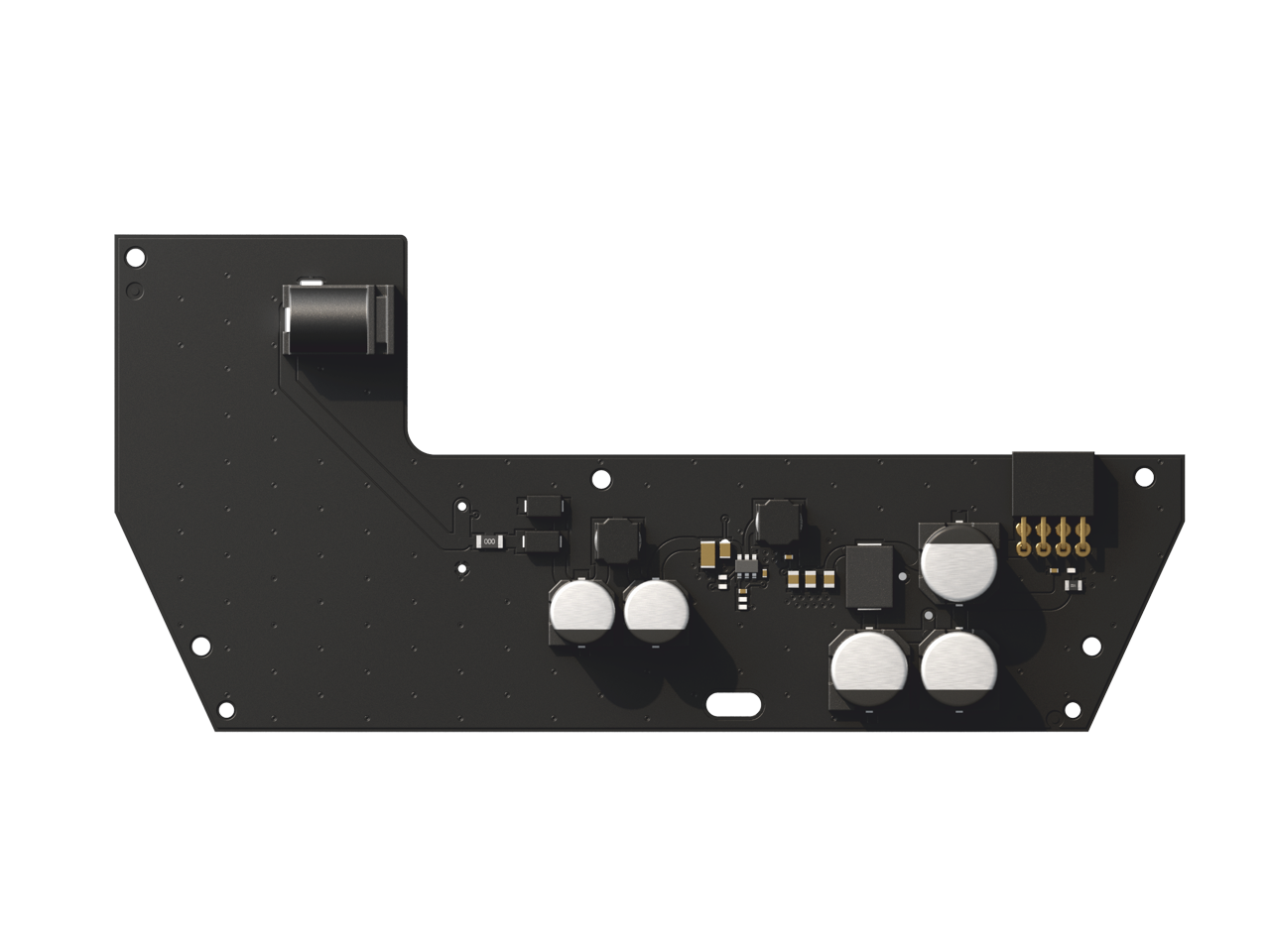

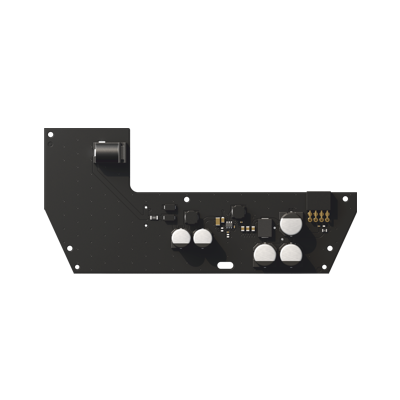

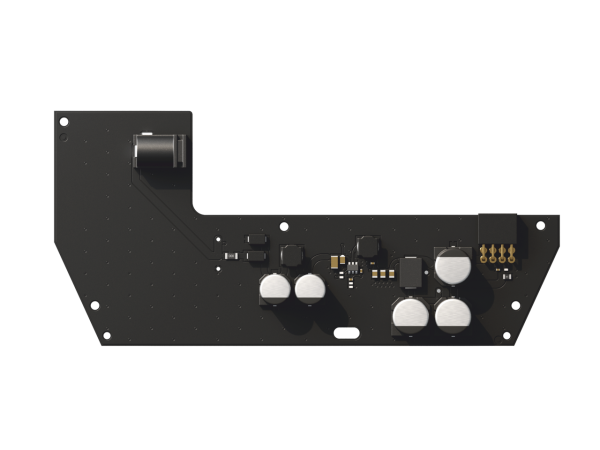

A power supply unit, connecting Hub / Hub Plus control panels and ReX radio signal range
extender to low-voltage power sources.

• Compatibility – Hub , Hub Plus , ReX
• Input voltage – 8-20 V DC
• Output voltage – 4.65 V ± 3%
• Switch-on voltage – 8 V ± 2.5%
• Switch-off voltage – 6.9-7.5 V (depending on load)
• Input current – <1 &#x410
• Output current – 1,5 &#x410
• Connection – Socket: 6,5 х 2 mm
  ; ; ; ; ; ; ; ; ; ; Plug: 5,5 х 2,1 mm ( power jack )
• Dimensions – 138 х 64 х 13 mm
• Weight – 30 g
• Complete set -;1. 12V PSU for Hub/Hub Plus/ReX
  ; ; ; ; ; ; ; ; ; ; ; 2. Terminal adapter
  ; ; ; ; ; ; ; ; ; ; ; 3. Quick guide

At warehouse

Use Ajax in premises lacking electricity or having an unstable power supply. A 12 V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery.

In trailer

Ajax protects your home, even if it goes on wheels. Connect the hub to a car or portable battery, and let the security system travel with you.

On yacht

Insert a SIM card and connect the hub to the on-board network or battery so that Ajax always guards your boat at the pier.

Compatibility

The power supply unit is compatible with Hub, Hub Plus, and ReX. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter.

Installation

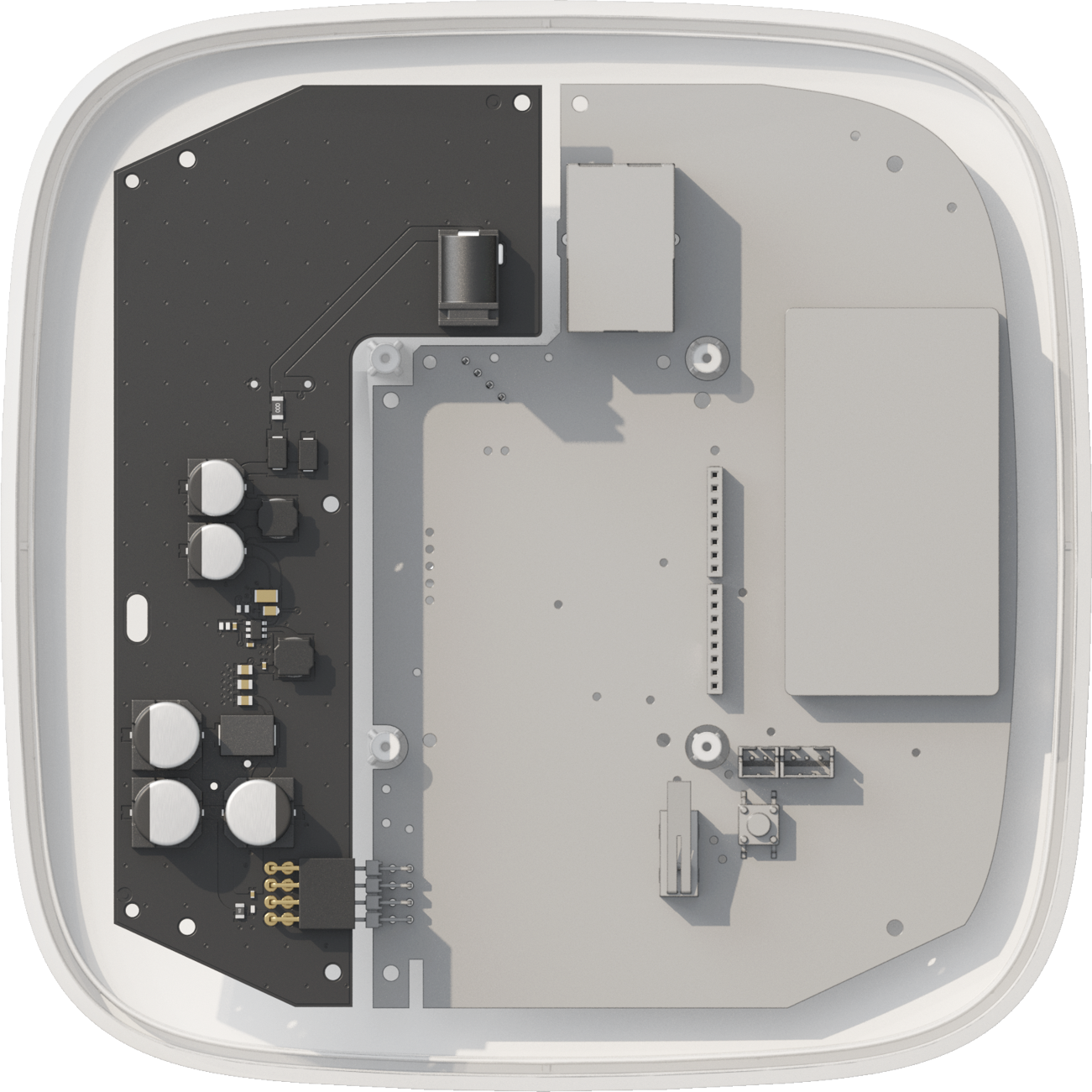

12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
