Description

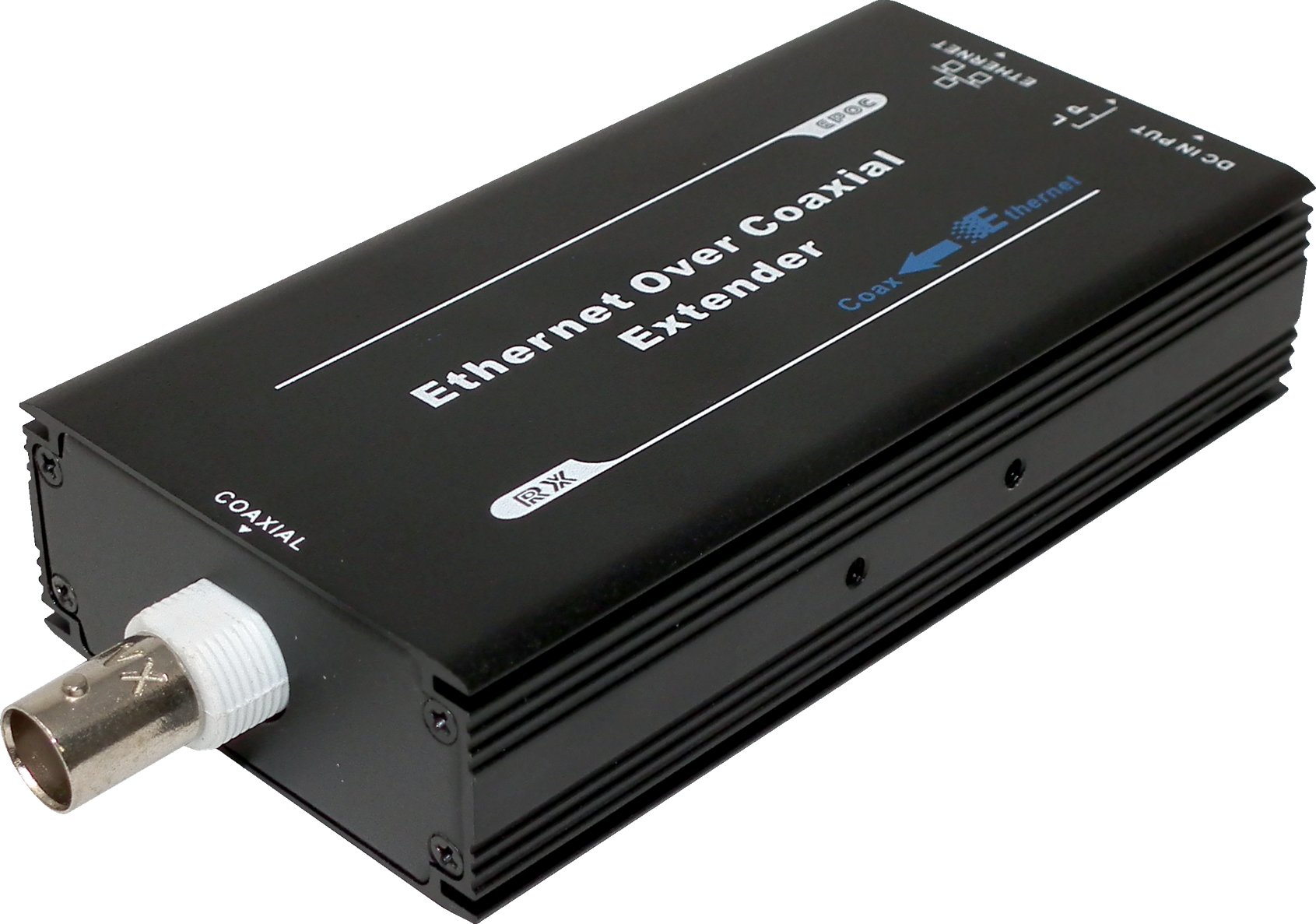

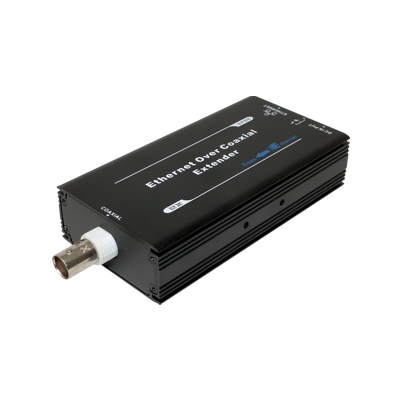

The DTV-IPCOAX/R is Ethernet and power signal receiver over single coaxial cable. The DTV-IPCOAX/R is used with DTV-IPCOAX/T, which is an ideal solution for reconstruction of;old projects without any change of existing coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and;power transmission distance reach max up to 1000 meters.;With high speed modern technology, the physical bandwidth is up to 100Mbps (bidirectional). The DTV-IPCOAX/R is built-in multi-stage surge and lightning protection protect;video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".;The DTV-IPCOAX/R is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading &expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.
- Ethernet transmission distance reaches max up to 1000 meters
- Power transmission distance reaches max up to 1000 meters
- Meet standards of EEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
- Support IEEE802.3af standard; automatically detect and recognize IEEE802.3af standard PD equipments;and provide power to PD equipments
- High speed modem technology, the physical bandwidth is up to 100Mbps (bidirectional)
- Multi-stage strong surge and lightning protection design
- Low power consumption, automatic error-correction coding technology
- Easy to install, plug-and-play mode, fast network connection

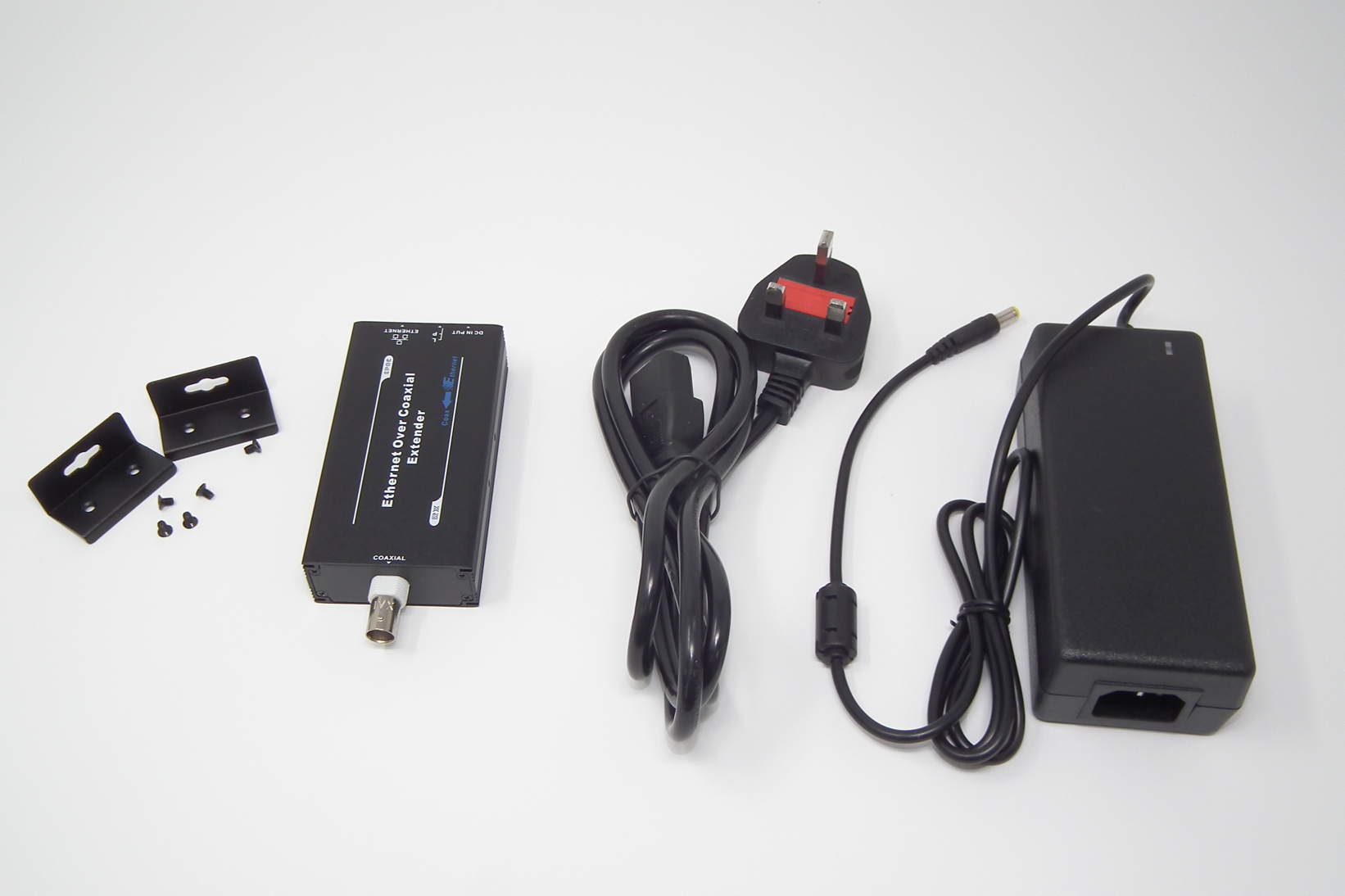

- Include extra 53VDC/1.25A power adaptor
